DL8000SE
JDL
Silent Diesel generator
7.5kw
3000/3600rpm
220 220/380 110/220
50/60hz
Silent
| Quantity: | |
|---|---|
DIESEL GENERATOR FEATURES
Scientific damping effect, patent two-stage muffler silencer, advanced air-flue design and muffler device.
Remoter: control anytime anywhere freely. ATS: automatic transfer from city power and gen-set power.Intelligent digital control panel: with overload, over voltage, over current and low oil pressure protection function.
100% copper alternator; class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion.
With air-preheating device,it can be easily started at low temperature.
With JDL four-stoke diesel engine, new top-clearance fuel pump and bottom injection technology, makes burning full and power strong.
Our 7kw diesel generator are 100% copper alternator, class F insulation, high conversion rate.
Our 7kw diesel generator with digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.
Our 7kw diesel generator use smart AVR controller ensures stable voltage and less voltage waveform distortion.
Our diesel generator are open frame configuration means itzs easy to move and use.
Wide application
Our diesel generator are various output sockets are available to meet all customers' requirements.
| Model | DL8000SE |
| Rated Frequency [Hz] | 50 60 |
| Rated Voltage [V] | 220,230,240,110/220,115/230,120/240,220/380,230/400, |
| Rated Output Power [KVA] | 6.5 7.2 |
| Max Output Power [Kva] | 7.0 8.0 |
| DC Output | 12V 8.3A |
| Phase Number | Single Phase / Three Phase |
| Excitation Mode | Self-excitation , brush |
| Power Factor Φ | 1.0(0.8) |
| Insulation Grade | F |
| Fuel Tank Capacity [L] | 14.5 |
| Engine Model | DL192FE |
| Starting System | Electric Starting |
| Engine Type | 1-Cylinder ,4-Stroke, Air-cooled,Veritical |
| Broke * Stroke [mm] | 92*75 |
| Displacement | 0.499L |
| Compression Ratio | 19.5 |
| Rated Rotation Speed [rpm] | 3000 3600 |
| Rated Power [Kw] | 7.6 8.6 |
| Lube [L] | 1.65 |
| Fuel Type | 0#(summer), -10#(winter), diesel oil |
| Lube | SAE10W30 ( above CD grade ) SAE10W30 |
| Low Oil Pressure Alarm System | With |
| Optional Standard | ATS |
| Remote control | |
| Digital Smart Panel | |
| Overall Diemension [mm] ( L*W*H) | 910*530*740 |
| Net Weight [Kg] | 149 |
DIESEL GENERATOR FEATURES

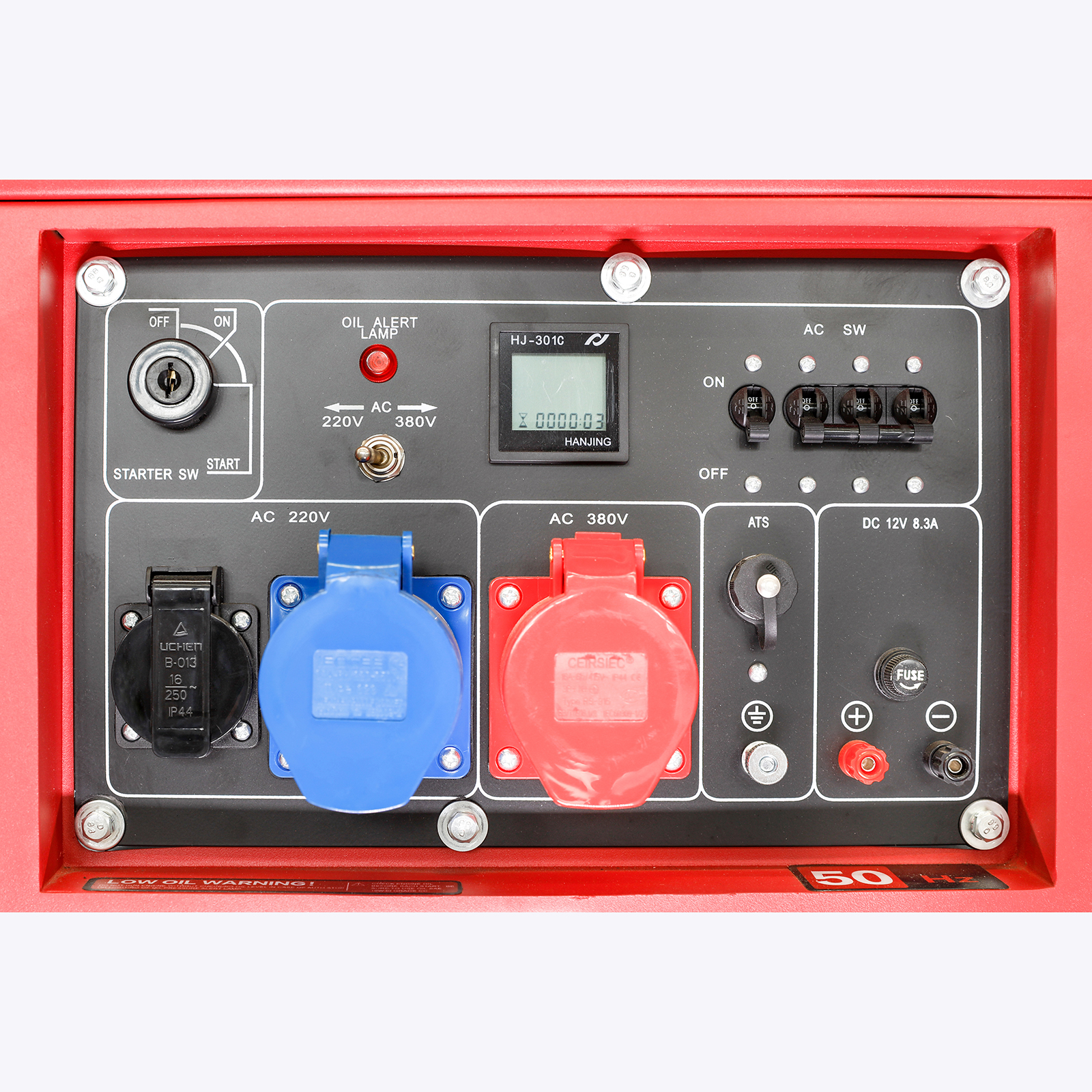

Diesel generator Three phase control panel output 220/380V
Generator use 30Ah battery
Wheel for easy move
1. What type of engine does the 7KVA silent diesel generator use?
The single cylinder air cooled 7KVA silent diesel generator uses a 14HP(JD192FAE) diesel engine.
2. How much power does the single cylinder air cooled 7KVA silent diesel generator produce?
The single cylinder air cooled 7KVA silent diesel generator produces 7KVA of power(Single phase 220V 50HZ, 110/220V 60HZ).
3. Does the single cylinder air cooled 7KVA silent diesel generator require any special type of fuel?
The single cylinder air cooled 7KVA silent diesel generator requires 0 # summer 10 # winter diesel fuel.
4. What is the purpose of the single cylinder air cooled 7KVA silent diesel generator?
The single cylinder air cooled 7KVA silent diesel generator is used to provide electrical power in areas where mains power is not available.
5. How silent is the single cylinder air cooled 7KVA silent diesel generator?
. The single cylinder air cooled 7KVA silent diesel generator is designed with special soundproofing to keep it as quiet as possible. The noise is 72dB at 7 meter.
6. What type of cooling system does the single cylinder air cooled 7KVA silent diesel generator use?
. The single cylinder air cooled 7KVA silent diesel generator uses an air cooled cooling system.
7. How big is the single cylinder air cooled 7KVA silent diesel generator?
The single cylinder air cooled 7KVA silent diesel generator is relatively compact and measures 940*540*700mm.
8. What type of maintenance is required for the single cylinder air cooled 7KVA silent diesel generator?
. The single cylinder air cooled 7KVA silent diesel generator requires regular servicing(500hours), including oil and filter changes, as well as regular checks of the fuel and cooling system.
9. Does the single cylinder air cooled 7KVA silent diesel generator have any safety features?
Yes, the single cylinder air cooled 7KVA silent diesel generator is equipped with an overload protection system and an emergency stop switch to ensure safety.
10. Is the single cylinder air cooled 7KVA silent diesel generator easy to install and operate?
Yes, the single cylinder air cooled 7KVA silent diesel generator is designed for easy installation and operation.
1. Check the output line to see whether the generator display screen displays the voltage normally?
2. Check whether the socket and empty opening are normal?
3. Direct measure whether the voltage of the main winding terminal of the generator set exists?
4. Check whether the voltage regulator (AVR) is damaged?
5. Check whether the carbon brush is damaged?
Generator problem voltage and power drop
1. Check for overloading phenomenon
2. Check the generator for any hall sweeping phenomenon
3. The fixing bolt of the generator stator is loose
Benefits of diesel generators include durability, relatively low maintenance requirements, and fuel efficiency compared with other types of generators.
2. How long do diesel generator last ?
Diesel generators have a typical lifespan range of 10,000 hours to 50,000 hours.
3. What should i look for when buying a diesel generator
When buying a diesel generator, you should consider noise emission, maintenance requirements, price, and the overall reputation of the generator's brand.
4. What is difference between an electric generator and a diesel generator
Electric generators use electricity or batteries to function while diesel generators need diesel fuel to function. Diesel is known to be one of the cheaper options for fueling a generator, but electricity is known to be very good for backing up the power in your house when there are emergency shut offs.
5. What are the different types of diesel generators
The three main types of diesel generators include inverter, standby, and portable. we supply OEM for our customer.
6. What is difference between diesel generator and gasoline generator ?
Diesel generators use diesel fuel, which is heavier and contains more energy than gasoline generator. Diesel generators are more fuel efficient, produce less emissions and can be left running for long periods of time without needing frequent refueling. They are also more reliable and less p to breakdowns than gasoline generators. Gasoline generators, on the other hand, are cheaper, lighter, and easier to start, but they require more frequent refueling and are more prone to breakdowns
