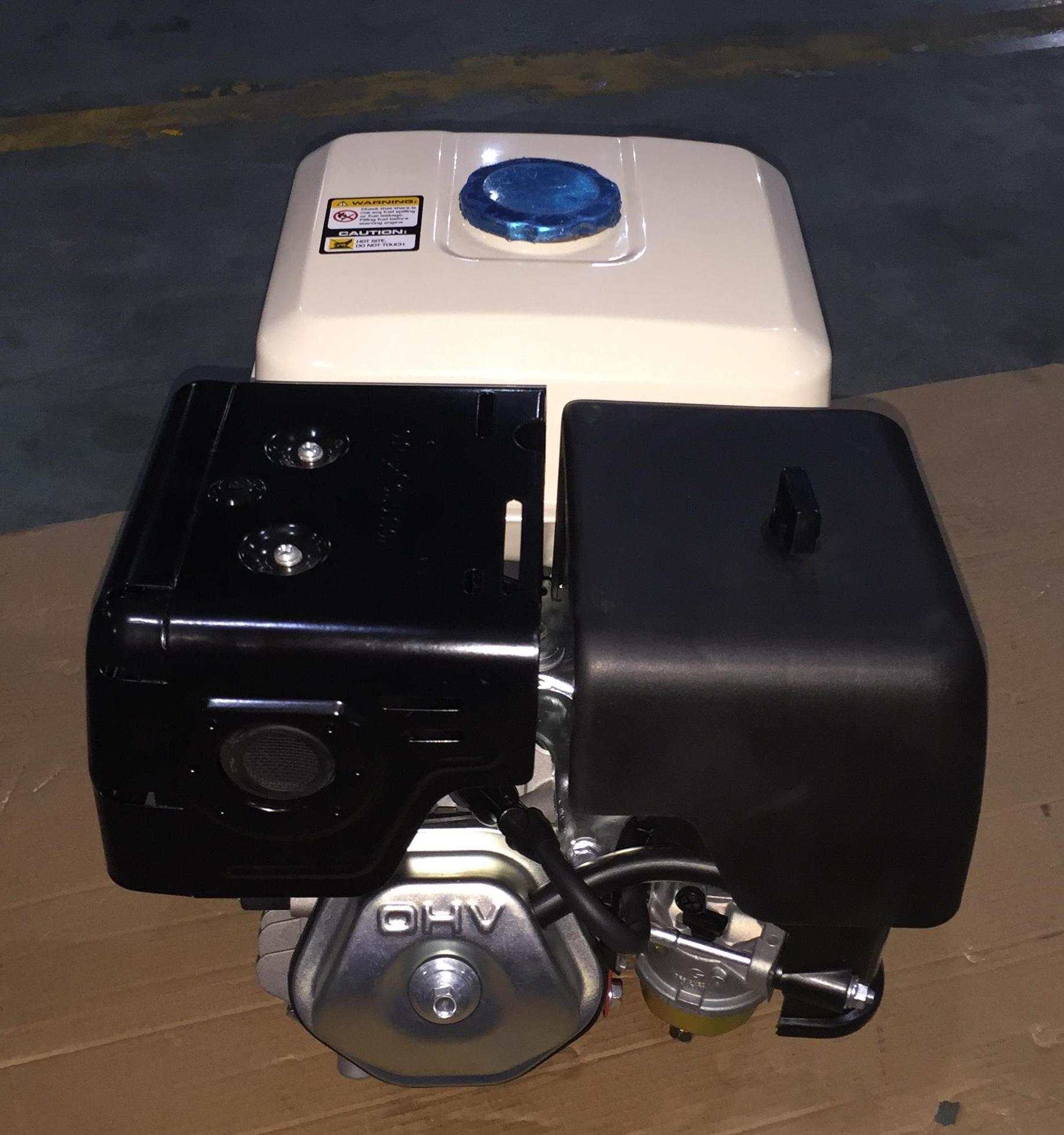

13HP Gasoline Engine DG188F

13HP Gasoline engine
3600rpm
OHV    recoil start and key start
Q shaft and P shaft



  • DG188F

  • 13HP

  • 3000/3600rpm

Availability:
Quantity:


13HP GASOLINE ENGINE FEATURES


● Light and handy in structure
● Simple installation & stable operation
● Fuel-saving, quick starting
● Low noise & convenient maintenance


13HP GASOLINE ENGINE SPECIFICATION.

Model DG188F(E)
Type 1-Cylinder,4-Stroke, Air Cooled Gasoline Engine
Combustion System Direct Injection
BorexStroke(mm) 88x64
Displacement(cc)
Rated Rotation Speed(rpm) 3600
Max Power(HP) 13
Starting Mode Manual/Electric Starting
Power Output Axis Crankshaft
Operation Direction of Output Axis Left(View in the direction of output axis)
Lube SAE10W30
Fuel Tank Capacity(L) 6.5
Lube Capacity(L) 1.1
Overall Dimension[mm](LxWxH) 475x450x520
Qty/20GP/40GP/40HQ 240/480/600


Gasoline engine  Shaft dimension

华胜泰画册_02(1)



Gasoline engine using.



gasoline engine use area
