6.5HP GASOLINE ENGINE FEATURES

● Light and handy in structure
● Simple installation & stable operation
● Fuel-saving, quick starting
● Low noise & convenient maintenance

6.5HP GASOLINE ENGINE SPECIFICATION.

Model	DG168F(E)
Type	1-Cylinder,4-Stroke, Air Cooled Gasoline Engine
Combustion System	Direct Injection
BorexStroke(mm)	68x45
Displacement(cc)	163
Rated Rotation Speed(rpm)	3600
Max Power(HP)	5.5
Starting Mode	Manual/Electric Starting
Power Output Axis	Crankshaft
Operation Direction of Output Axis	Left(View in the direction of output axis)
Lube	SAE10W30
Fuel Tank Capacity(L)	3.6
Lube Capacity(L)	0.6
Overall Dimension[mm](LxWxH)	417x368x385
Qty/20GP/40GP/40HQ	550/1120/1120

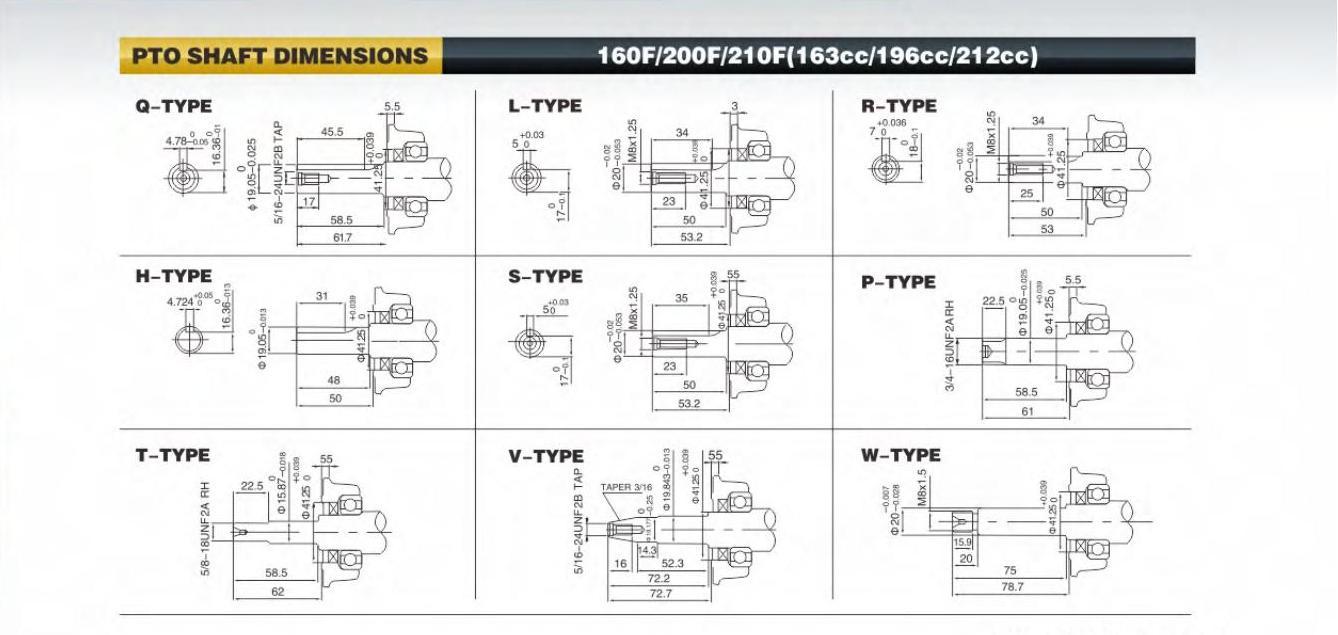

Gasoline engine  Shaft dimension

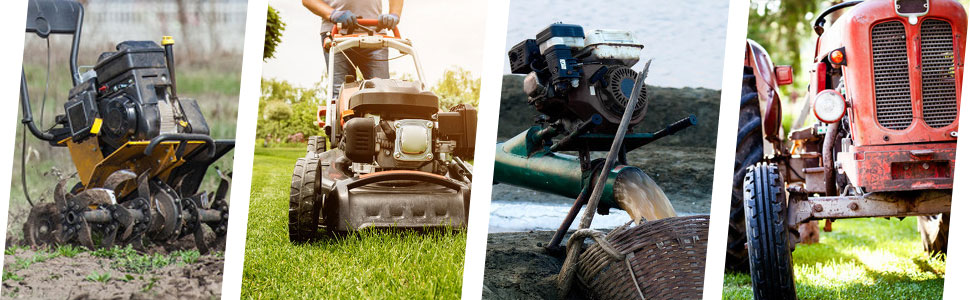

6.5HP Gasoline engine using area.
