DGP80B
JDL
6.5HP
3600
OPEN
| Quantity: | |
|---|---|

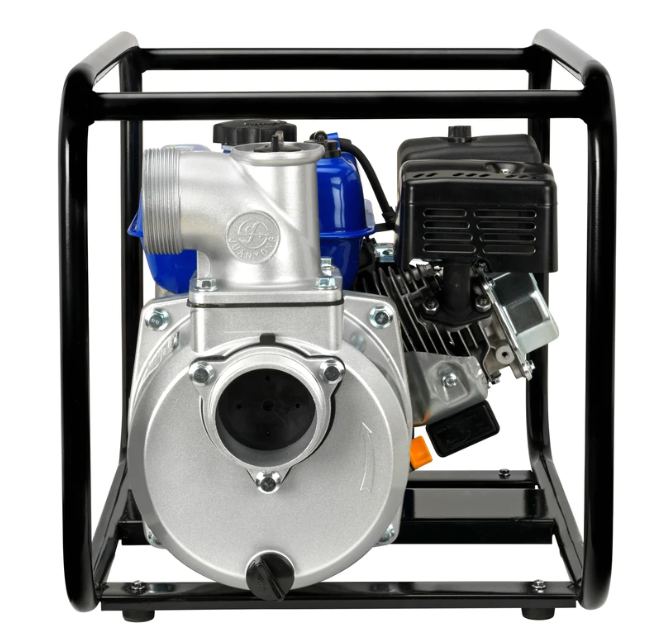

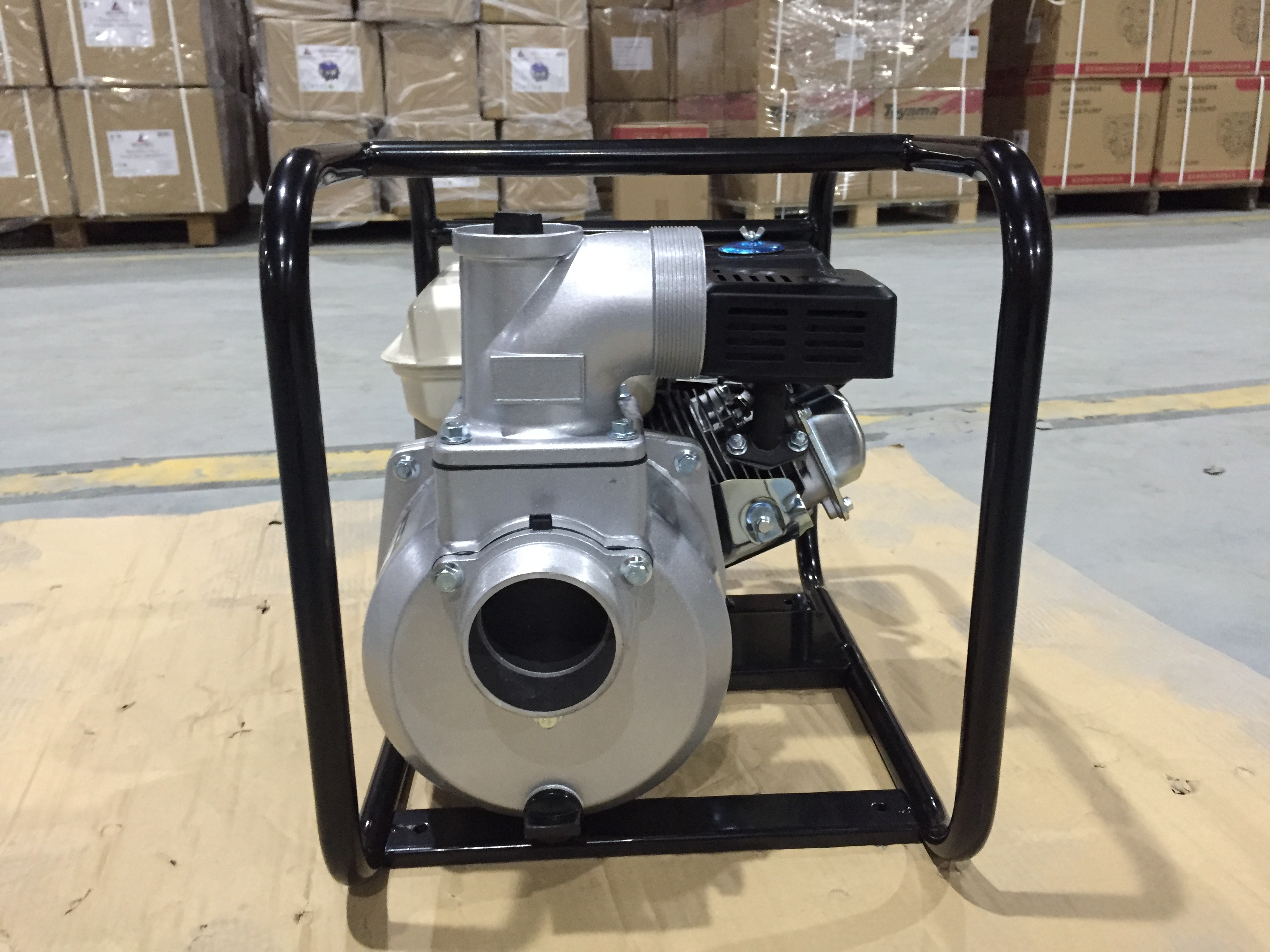

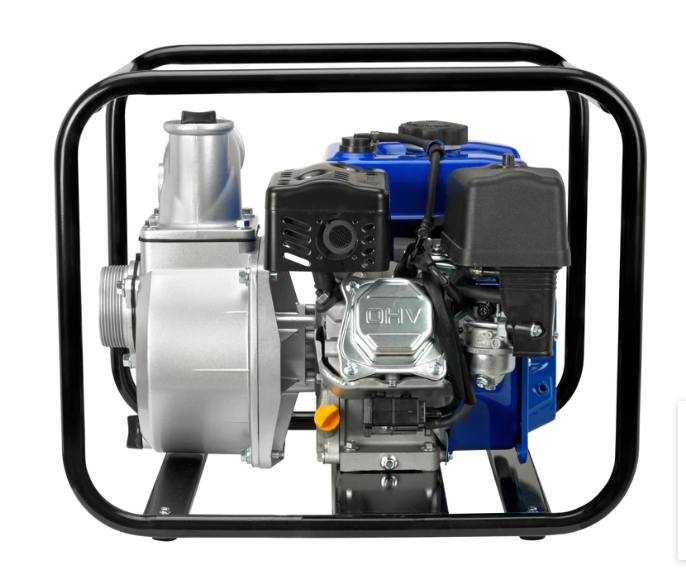

Driven by super light JDL gasoline engine
Self-suction structure
Die-casted aluminum pump with qualified mechanical sealing device
Widely used in gardening, irrigation & ……
| Model | DGP80B | ||||
| Engine Model | DL168FB | ||||
| Engine Type | OHV, 25°, Single Cylinder,Forced Air Cooling, 4-storke | ||||
| Power Hp | 6.5 | ||||
| Bore x Stroke | 68x 54 | ||||
| Starting System | Recoil Start | ||||
| Fuel Type | 90# or Higher Standard unleaded Gasoline | ||||
| Fuel Tank Capacity(L) | 3.6 | ||||
| Oil Volume(L) | 0.6 | ||||
| Rated Output(kW) | 3.8 | ||||
| Rated Rotary Speed(rpm) | 3600 | ||||
| Inlet(Outlet) Diameter(mm) | 80/80 | ||||
| Suction(m) | 7 | ||||
| Lift(m) | 30 | ||||
| Flow(m3/h) | 36 | ||||
| Self-suction Time(s) | ≤180 | ||||
| Package Dimensins(mm) | 475×440×425 | ||||
| N.W/G.W(Kg) | 24/26 |
Driven by super light JDL gasoline engine
Self-suction structure
Die-casted aluminum pump with qualified mechanical sealing device
Widely used in gardening, irrigation & ……
| Model | DGP80B | ||||
| Engine Model | DL168FB | ||||
| Engine Type | OHV, 25°, Single Cylinder,Forced Air Cooling, 4-storke | ||||
| Power Hp | 6.5 | ||||
| Bore x Stroke | 68x 54 | ||||
| Starting System | Recoil Start | ||||
| Fuel Type | 90# or Higher Standard unleaded Gasoline | ||||
| Fuel Tank Capacity(L) | 3.6 | ||||
| Oil Volume(L) | 0.6 | ||||
| Rated Output(kW) | 3.8 | ||||
| Rated Rotary Speed(rpm) | 3600 | ||||
| Inlet(Outlet) Diameter(mm) | 80/80 | ||||
| Suction(m) | 7 | ||||
| Lift(m) | 30 | ||||
| Flow(m3/h) | 36 | ||||
| Self-suction Time(s) | ≤180 | ||||
| Package Dimensins(mm) | 475×440×425 | ||||
| N.W/G.W(Kg) | 24/26 |
