5hp Air-cooled Diesel Engine JD170F

JDL diesel engine factory supply 1-cylinder force air cooled diesel engine from 3HP-15HP. our diesel  engine are  excellent fuel injection system with skilled craftsmanship and strict quality concept, which makes JDL diesel  engine strong output, safe and reliable. This high-performance fuel injection system ensures high efficiency running, lower fuel consumption and emission, also much lower the noise level. we supply diesel electric engine.
our diesel engine widely using for diesel generator, diesel water pump and construction,  our engine have differnt crankshaft using for different machine, we supply keyway shaft, thred shaft, tapper shaft, our diesel engine have 3000rpm and 3600rpm for customer choose.
  • JD170F
  • JDL
  • Air cooled diesel engine
  • 5hp
  • 3000/3600rpm
Availability:
Quantity:


WHAT IS DIESEL ENGINE AND GASOLINE ENGINE DIFFERENCE



Gasoline engine

Diesel engine

Fuel

gasoline

diesel oil

Inspired gas

A mixture of air and petrol

Pure air

Fuel feeding

Using carburetor external mix air and gasoline directly in intake injection mix (external mix)

Injection pump to pump fuel at hundreds of pressures (mixed mix)

Power regulation

Change the throttle opening degree (quantity adjustment)

Adjustment with fuel injection quantity (quality adjustment)

Fire mode

Ignite type

Combustion type

Suitable cylinder diameter

Generally, it does not exceed 100mm

It is generally 70~1000mm

Heating process

Capacity heating process

Mixed heating process

Reduction ratio

lower

higher


5HP DIESEL ENGINE SPECIFICATION



Model

JD170F/FE

Engine Type

1 -Cylinder,4-Stroke, Air-cooled,Vertical

Combustion System

Direct injection

Broke*Stroke mm

70*55

Displacement L

0.211

Compression Ratio

20:1

Rated Speed rpm

3000 3600

Rated Power KW

2.5 2.8

Rated Power hp

3.4 3.8

Starting System

F:Recoil start

E:Electric start

Fuel Tank Capacity L

2.5

Lube Oil Capacity  L

0.75

Fuel Consumption g/kwh

275 280

Fuel Type

0#(summer),-10#(winter) Diesel oil

Lube Type

SAE10W30(CD grade or above)

Overall Diemension (L*W*H)mm

335*380*415

Net Weight kg

F: 27

FE:31

Rotation Direction (View from Flywheel)

Clockwise


Why choose us ?

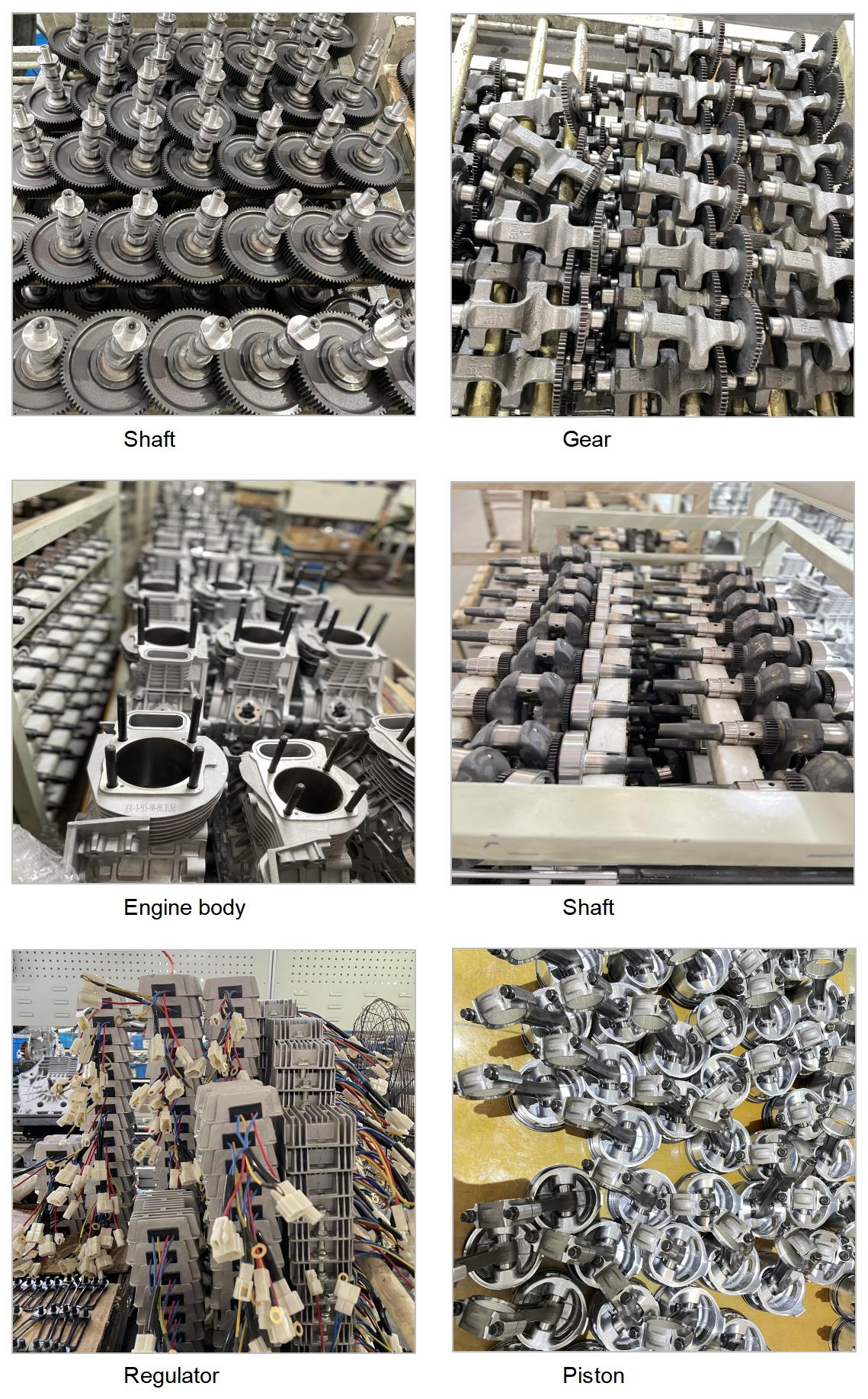

1.High quality  diesel engine spare parts

parts11

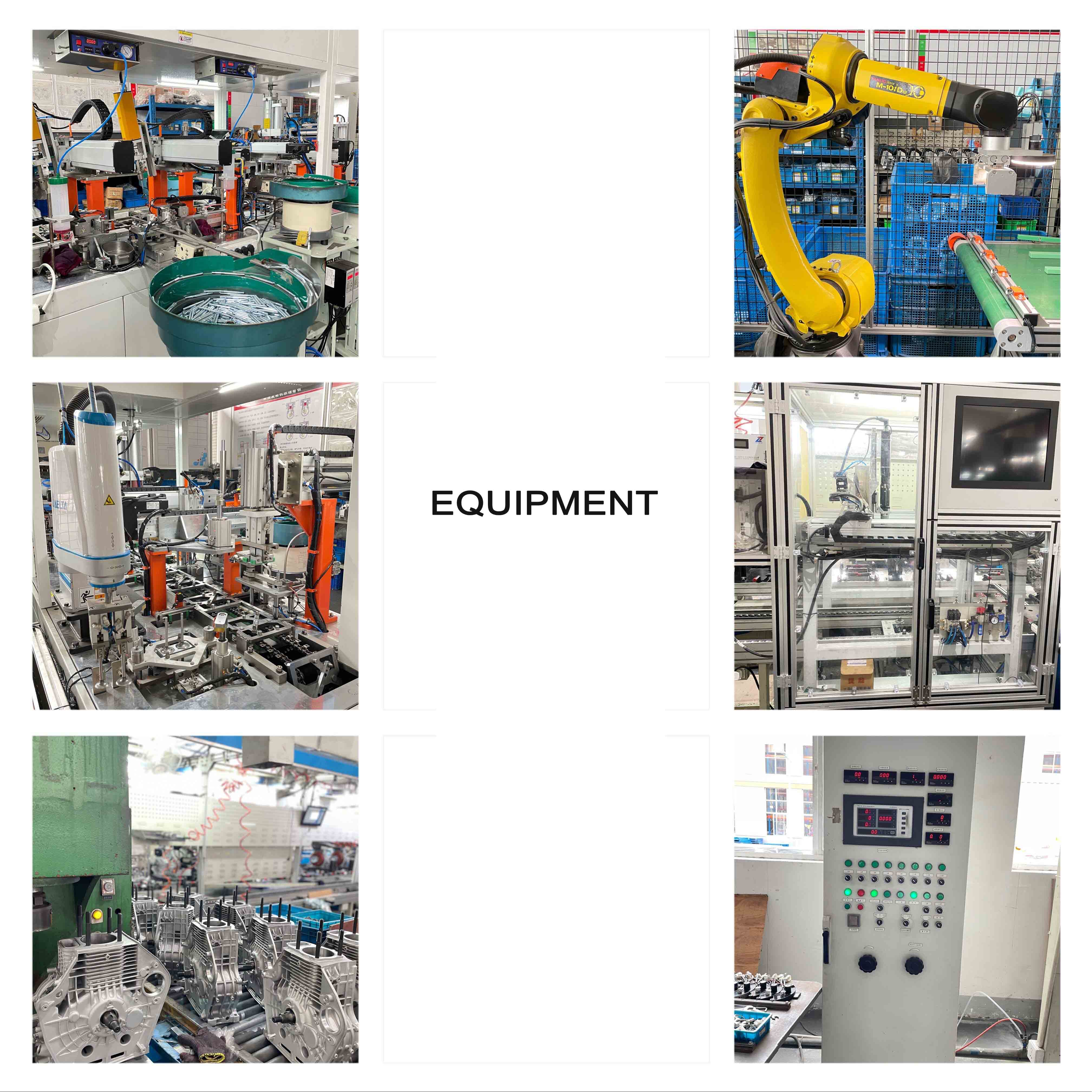

2. Our diesel engine  test eqquipment

QQ图片20220606201921


3.Strictly Control the whole production process and guarantee and delivery, Test all of our products one by one before packing to ensure the quality


FAQ


1. What’s your power range of  diesel engine

   Jdl prodvides the range from 5hp - 22hp air cooled diesel engine

2.Whats  your delivery time

   Usually jdl company can deliver the order in 15-30days after we get your deposit.

3.What’s your payment

   We can accept 30%TT deposit, 70% TT see BL copy. LC.  OA

4.What’s your warranty

 within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,fuel pump,recoil starter,etc

5.What’s your MOQ

  Our MOQ is 5sets.

6.What is the material of your products?

   Aluminum,Iron,Steel,plastic,etc.

7.What certificate do you have for the diesel engine ?

 There are ISO 9001:2008, CE etc.

8.If I want to be your products distributor  in our country, what is your distribution policy?

  JDL power welcomes everybody join us and distribute products worldwide. We can issue authority certificates  and  sign agreement with you accordingly.

9. What is an air cooled engine ?

The diesel engine use air cooled down engine temperature.

10.How long can an air cooled bike engine run continuously ?

  One full fuel tank can continue working 8hours. If you add diesel fuel on time,  engine can run 24hours.

11. VW air cooled engine,


Diesel engine problem check and solve


The diesel engine cannot start up


1. Check whether the diesel oil quantity is sufficient or whether the fuel tank switch is in the open state?

2. Is the throttle switch (handle) running status again?

3. Whether there is any air in the oil intake pipe

4. Whether the startup method is wrong (finger start

5. Whether the air filter element is blocked

6. Check the oil injection nozzle for poor atomization or blockage

7. Whether the oil pump is out of oil

You can contact us when your diesel engine have problem. we will help you solve it in first time.  we supply 24hours severce.
