DL178F
JDL

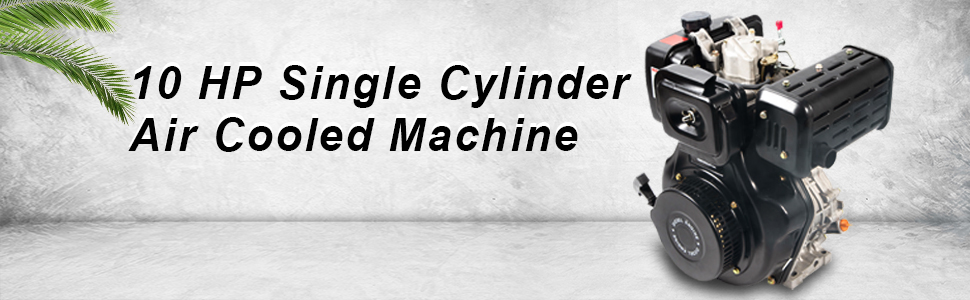

Air cooled diesel engine
8hp
3000/3600rpm
Force air cooled
Availability: | |
---|---|
Quantity: | |
Low fuel consumption
With new tip-clearance fuel pump and bottom inertia injection technology, combine new type combustor and high burning rate, its fuel economy is much lower than gasoline engines.
Well-designed gear transmission structure, make the vibration decreased and noise lowed, patented air cleaner, lower the noise of air inlet and outlet.
Safe and reliable
Excellent production process, strict QC system to make sure the products safe and reliable.
Model | DL178F/FE |
Engine Type | 1 -Cylinder,4-Stroke, Air-cooled,Vertical |
Combustion System | Direct injection |
Broke*Stroke mm | 78*62 |
Displacement L | 0.296 |
Compression Ratio of diesel engine | 20:1 |
Rated Speed rpm | 3000 3600 |
Rated Power KW | 3.7 4.0 |
Rated Power hp | 5.0 5.4 |
Starting System | F:Recoil start E:Electric start |
Fuel Tank Capacity L | 3.5 |
Lube Oil Capacity L | 1.1 |
Fuel Consumption g/kwh | 275 280 |
Fuel Type | 0#(summer),-10#(winter) Diesel oil |
Lube Type | SAE10W30(CD grade or above) |
Overall Diemension (L*W*H)mm | 520*460*540 |
Net Weight kg | F:35 FE:38 |
Rotation Direction (View from Flywheel) | Clockwise |

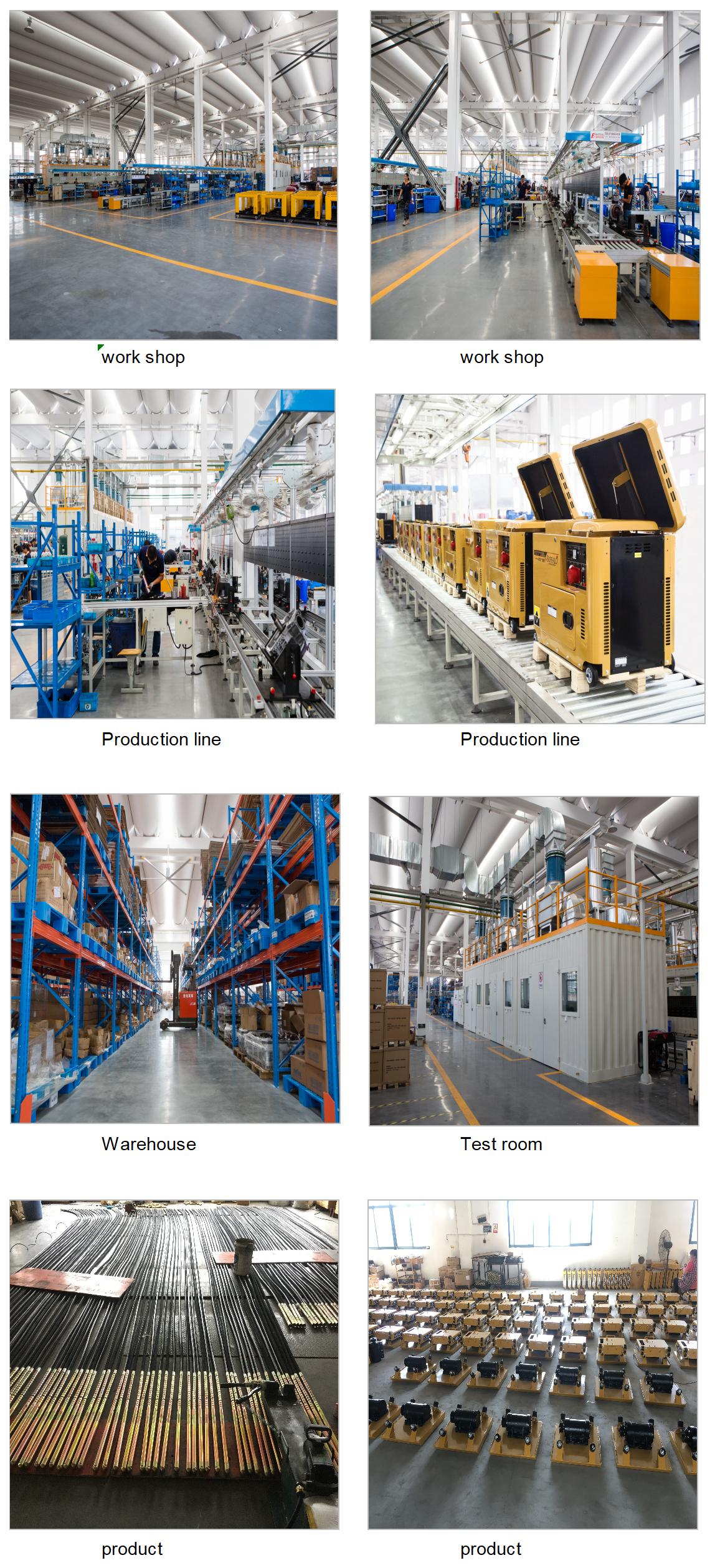

2. Workshop
1. What’s your power range of diesel engine
Jdl prodvides the range from 5hp - 22hp air cooled diesel engine
2.Whats your delivery time
Usually jdl company can deliver the order in 15-30days after we get your deposit.
3.What’s your payment
We can accept 30%TT deposit, 70% TT see BL copy. LC. OA
4.What’s your warranty
within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,fuel pump,recoil starter,etc
5.What’s your MOQ
Our MOQ is 5sets.
6.What is the material of your products?
Aluminum,Iron,Steel,plastic,etc.
7.What certificate do you have for the diesel engine ?
There are ISO 9001:2008, CE etc.
8.If I want to be your products distributor in our country, what is your distribution policy?
JDL power welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
