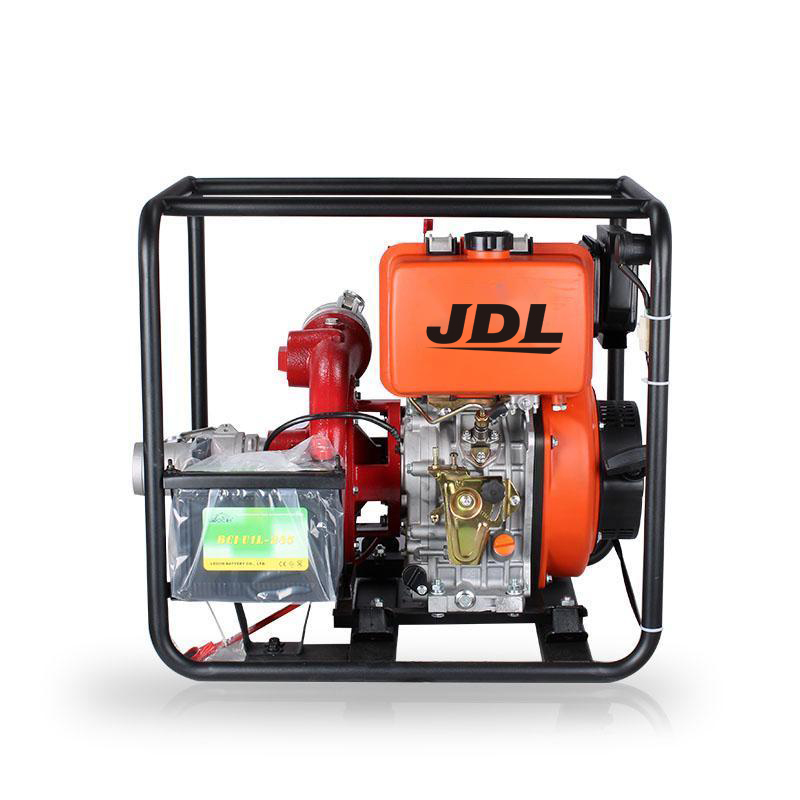

DIESEL CAST IRON WATER PUMP FEATURES.

Low Fuel consumption

With JDL strong air-cooled diesel engine, make sure low fuel consumption

Portable design

New light weight and compact design make it easy and safe to move.

Convenient Maintenance

Aluminum self-priming pump, maintenance free; open design, easy leads to the engine.

Reliable and durable

Safe and reliable engine with enhanced pump cover structure assure the pump durable service.

Head high and less self-priming time

Strong engine and vortex impeller design, good sealing, greatly promote head of delivery, and less self-priming time

DIESEL CAST ITRON WATER PUMP SPECIFICATION

Model	JDP50CB
Suction / Discharge Port Diameter[mm]	50( 2")
Cont. Capacity[m³/h]	30      35
Cont. Head [M]	80       92
Self-priming Time[s/4m]	180       180
Max.Suction Head[M]	8.0
Fuel Tank Capacity[L]	B: small fuel tank ( 5.5L)    L: large fuel tank( 12.5L)
Engine Type	JD178F    JD186F
Starting System	F: Recoil starter    E:electric start
Engine Type	1-Cylinder ,4-Stroke ,Air-cooled, Veritical
Broke * Stroke[mm]	78 * 62     86 * 72
Displacement[L]	0.296     0.418
Compression Ratio	19.5:1
Rated Rotation Speed[rpm]	3600
Rated Power[Kw]	4.0    6.6
Lube[L]	1.65
Fuel Type	0#(summer), -10#(winter) Diesel oil
Lube	SAE10W30 (above CD grade)
Overall Diemension [mm]( L*W*H)	680*458*620
N.W[Kg]	80

Diesel cast iron water pump  features

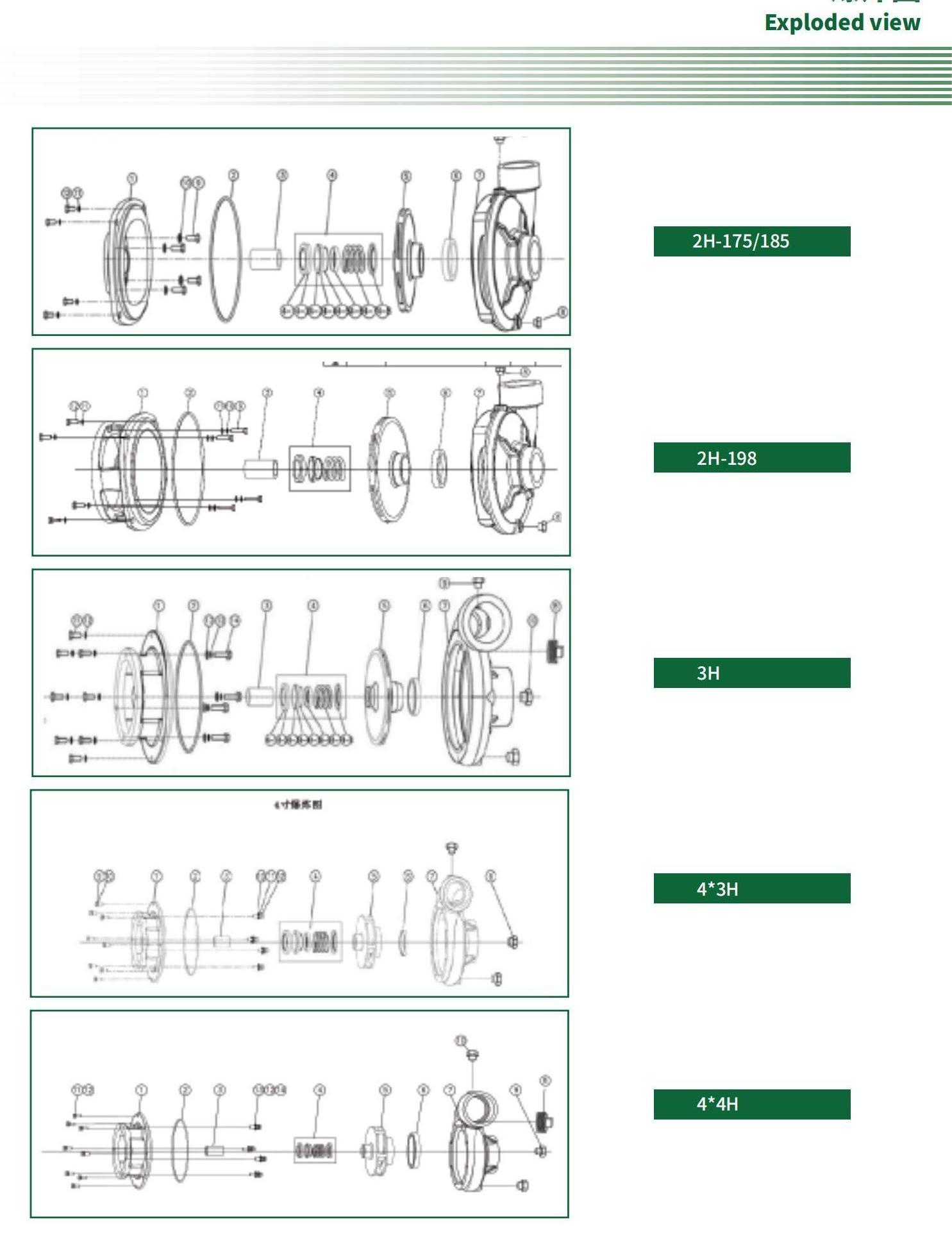

Diesel cast iron water pump Diagram

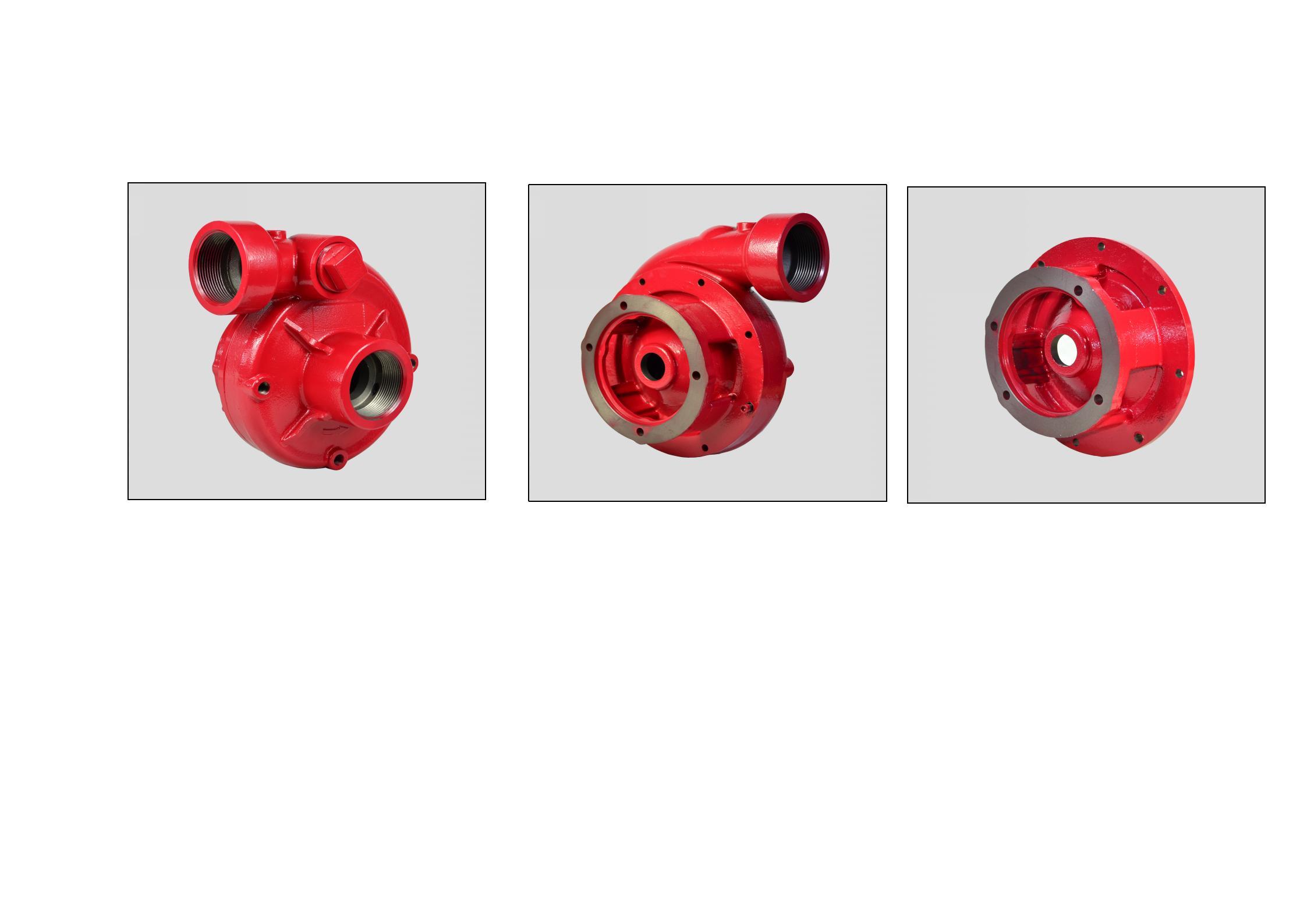

PUMP BODY.

APPLICATION SCOPE :

Agriculture production

Mining and metalurgical industries

Life water supply

Waterlogging and drought resistance

Landscaping

The fire appplication

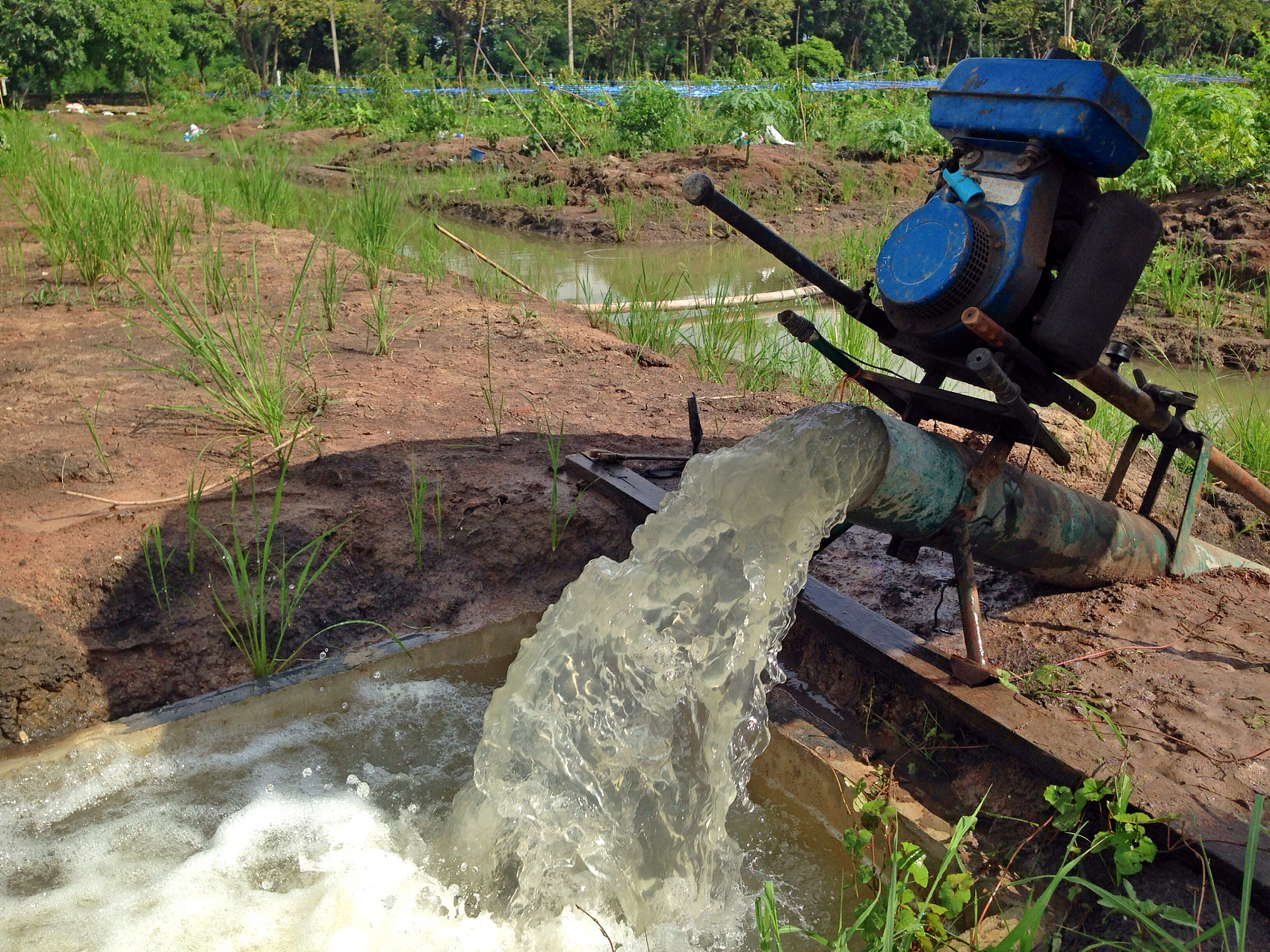

WATER PUMP USE  FOR AGRICULTURE

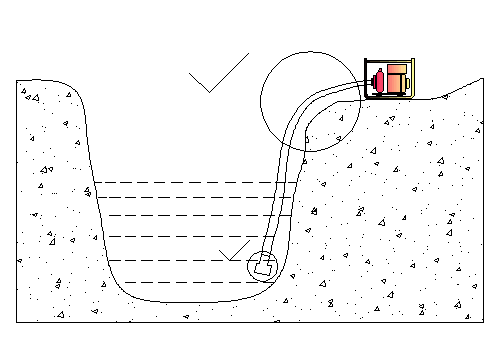

Schematic diagram of connection mode：

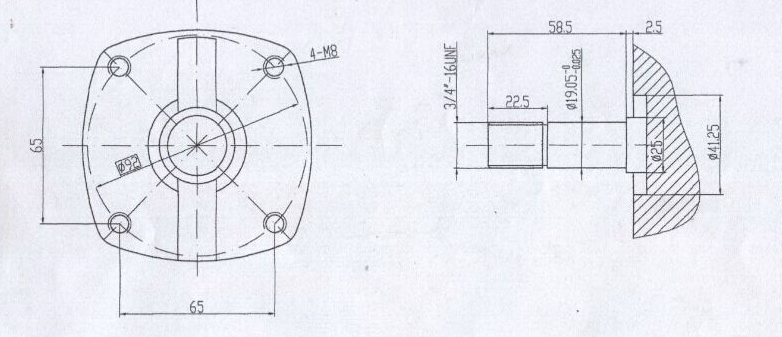

Power adapter mounting dimensions:

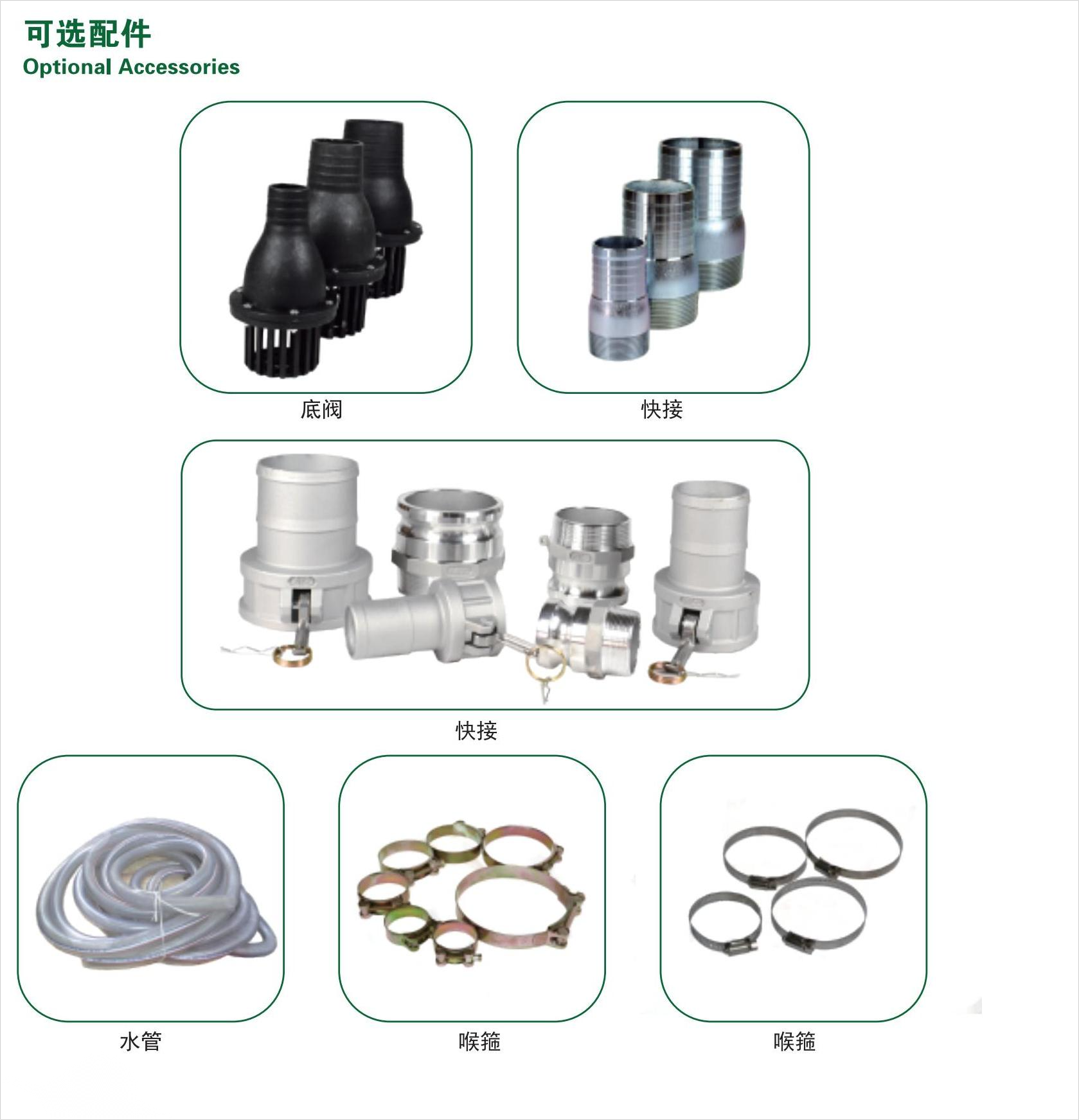

Water pump adapter：1.5*1.5-171  2*2-175

Water pump adapter：2*2-198 3*3-188 3*3-208 4*3-150 4*3-170

4*4-150 4*4-170
