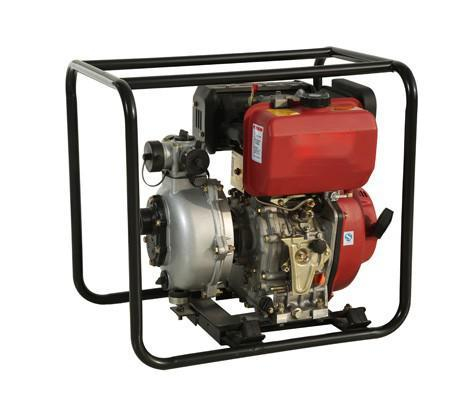

Diesel high pressure water pump JDP50HB

Our diesel water pump use supper suction capacity, with big flow, compact design, easy to move, widely used in agricultural irrigation, fishery, flood-fighting and emergency rescues, construction site, tunnels, etc. Self-suction pump, diesel high pressure pump and diesel iron pump to choose, can meet various requirements.

  • JDP50HB

  • JDL

Availability:
Quantity:


DIESEL HIGH PRESSURE WATER PUMP FEATURES.


Low Fuel consumption

With JDL strong air-cooled diesel engine, make sure low fuel consumption


Portable design

New light weight and compact design make it easy and safe to move.


Convenient Maintenance

Aluminum self-priming pump, maintenance free; open design, easy leads to the engine.


Reliable and durable

Safe and reliable engine with enhanced pump cover structure assure the pump durable service.


Head high and less self-priming time

Strong engine and vortex impeller design, good sealing, greatly promote head of delivery, and less self-priming time


DIESEL WATER PUMP SPECIFICATION

Model   JDP50HB
Suction / Discharge Port Diameter [mm]50 ( 2")
Cont. Capacity [m³/h]
18
Cont. Head [M]45
Self-priming Time [s/4m]180
Max.Suction Head  [M]6.0
Fuel Tank Capacity [L]small fuel tank ( 5.5L)
Engine TypeJD186FA/FAE
Starting SystemF: Recoil starter        E:  electric start
Engine Type1-Cylinder ,4-Stroke ,Air-cooled, Veritical
Broke * Stroke   [mm]86*72
Displacement   [L]0.418
Compression Ratio19.5:1
Rated Rotation Speed [rpm]3600
Rated Power   [Kw]6.6
Lube  [L]1.65
Fuel Type0#(summer), -10#(winter) Diesel oil
LubeSAE10W30 ( above CD grade )
Overall Diemension [mm]   ( L*W*H)655*480*720
