DL10000SE
JDL
9KW
3000/3600
220V 120/240V
50/60HZ
Silent
| Quantity: | |
|---|---|
Stable output
Smart AVR controller ensures stable voltage and less voltage waveform distortion.

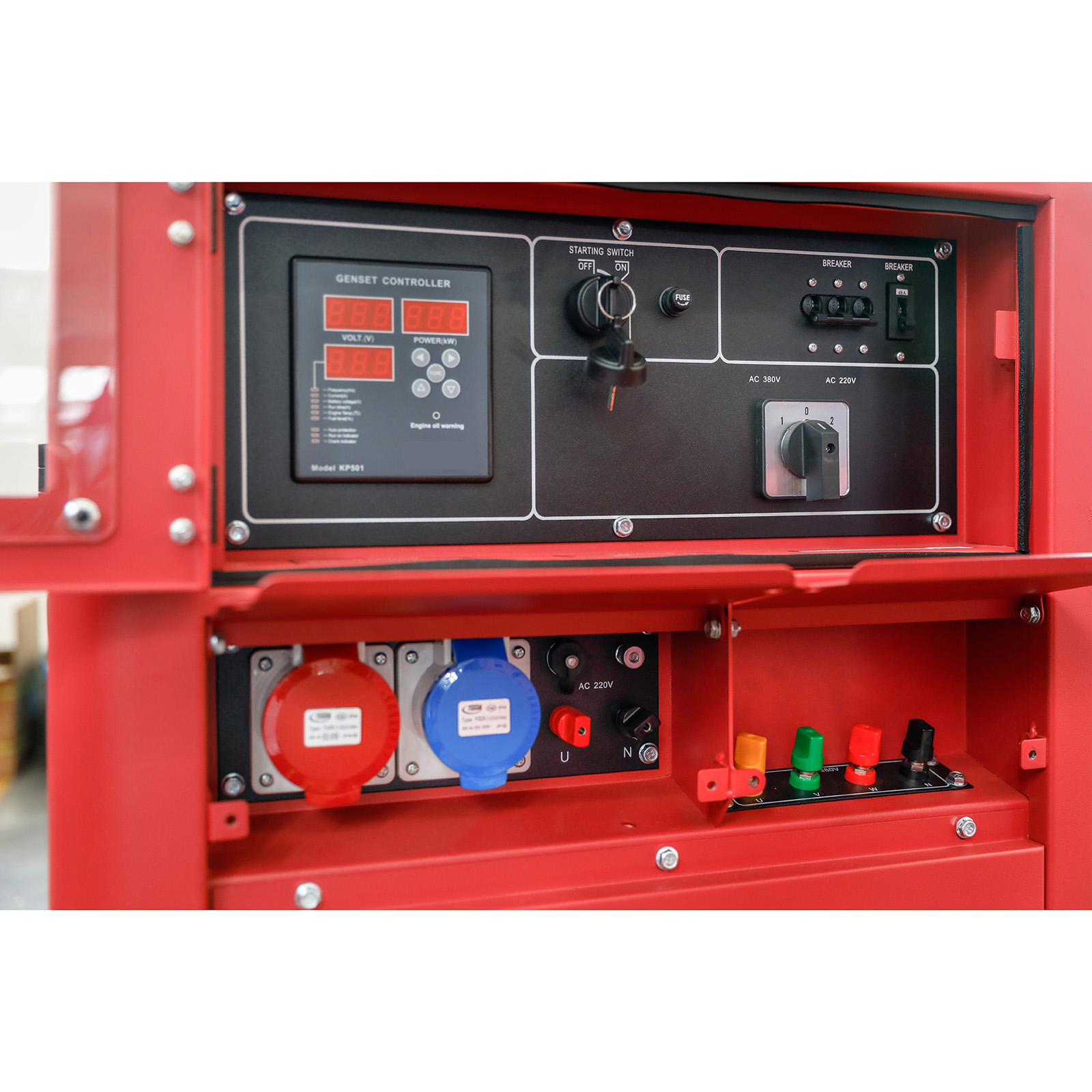

Digital panel
Digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.
Easy carrying
An open frame configuration means it’s easy to move and use.
Wide application
Various output sockets are available to meet all customers’ requirements
| Model | DL10000SE |
| Frequency[Hz] | 50 60 |
| Voltage[V] | 220,230,240,,120/240,220/380, |
| Rated Power[Kva] | 9.0(11.0) 9.5(11.5) |
| Max. Power[Kva] | 10.0(12.0) 10.5(12.5) |
| Phase Number | Single/Three |
| Excitation Transistorized | Self-excitation , brush |
| Power Factor Cos Φ | 1.0(0.8) |
| Insulation Grade | F |
| Fuel Capacity[L] | 26 |
| Noise Level [Db](@ 7m) | 72 |
| Engine Model | KD2V80 |
| Engine Type | V Type,2-Cylinder ,4-Stroke,Water-cooled |
| Starting System | Electric Starting |
| Broke * Stroke[mm] | 2-80*79 |
| Displacement[L] | 0.794 |
| Compression Ratio | 23：1 |
| Rated Rotation Speed [rpm] | 3000 3600 |
| Rated Power[Kw] | 12.0 14.0 |
| Lube[L] | 2.3 |
| Fuel Type | 0#(summer), -10#(winter) diesel oil |
| Lube | SAE10W30 ( above CD grade ) |
| Overall Diemension[mm]( L*W*H) | 1200*650*760 |
| Net Weight[Kg] | 310 |
10kVA diesel generators are versatile and widely used in both civilian (home/domestic) and commercial/industrial settings. They come in different configurations to suit various needs:
1. Home Backup Power – Ideal for houses during power outages. Single-phase (220V, 50Hz or 110/220V, 60Hz) models ensure essential appliances like lights, fridges, and TVs keep running. Enclosed models reduce noise for residential areas.
2. Small Businesses & Shops – Powers shops, offices, and cafes with single-phase or three-phase (220/380V, 50Hz) options. Open-frame generators are cost-effective, while enclosed ones are quieter for urban locations.
3. Construction Sites – Rugged open-type generators provide 220/380V three-phase power for tools and machinery. Their durability and mobility make them perfect for temporary job sites.
4. Telecom & Emergency Services – Used for mobile towers, emergency response units, and hospitals. Enclosed models with low noise ensure reliable power without disturbance.
5. Farms & Rural Areas – Supports irrigation pumps, grain dryers, and farm equipment. Both single-phase (for small devices) and three-phase (for heavy-duty machines) versions are available.
These generators adapt to different voltages (50Hz/60Hz) and noise requirements, making them a flexible power solution worldwide.
