English
 |
DL4000E
JDL
3KW
3000/3600
220V 120/240V
50/60HZ
open type
| Quantity: | |
|---|---|
100% copper alternator, class F insulation, high conversion rate.
Stable output
Smart AVR controller ensures stable voltage and less voltage waveform distortion.
Digital panel
Digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.
Easy carrying
An open frame configuration means it’s easy to move and use.
Wide application
Various output sockets are available to meet all customers’ requirements
model | DL4000E |
Frequency (Hz) | 50 / 60HZ |
Voltage (V) | 220 110/220 |
Rated power (KVA) | 2.6 |
Power limit (KVA) | 2.8 |
Number of phases | Simplex |
Excitation method | Brush self-excitation |
Power factor () | 1.0 |
Insulation class | F |
Fuel tank capacity (L) | 12.5 |
Rack Type | 25*25MM round tube |
Power model | DL178FE |
Startup method | E: Electric start |
Power Category | Single cylinder four stroke air-cooled vertical |
Cylinder diameter*stroke (mm) | 78*62 |
Displacement (L) | 0.296 |
Compression ratio | 20 : 1 |
Speed (rpm) | 3000 |
Engine power (kW) | 3.7 |
Oil capacity (L) | 1.10 |
Fuel consumption (g/kwh) | 275 |
Fuel brand | Diesel: 0# (summer), -10# (winter) |
Engine oil brand | SAE10W30 (CD grade and above) |
Optional | ATS remote control intelligent digital display panel wheel handle |
Dimensions (mm) | 660*460*540 |
Net weight (kg) | 72 |

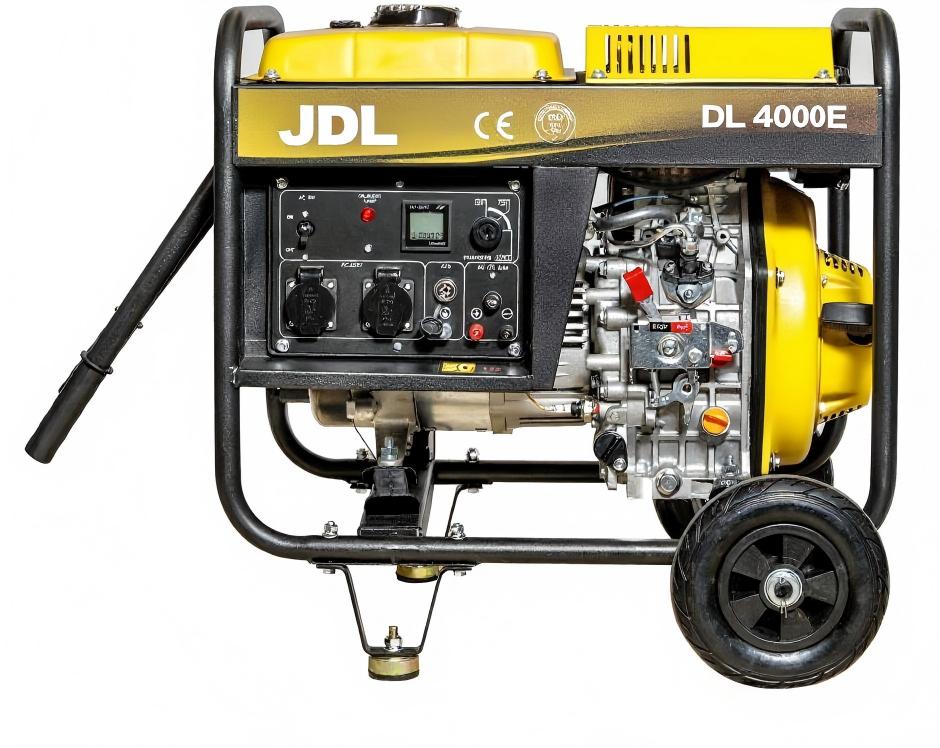

Open frame diesel generator set
As an emergency power source, it can quickly solve your power outage troubles. Lightweight and four-wheeled, it is a very good helper for outdoor operations, power generation, and welding.
Product Features
High conversion rate
All-copper motor, F-class insulation, high conversion efficiency.
Stable output
Intelligent voltage regulator AVR, stable voltage, small voltage waveform distortion.
Digital Panel
Digital intelligent control panel with integrated intelligent display of voltage, frequency and timing for easy care and maintenance.
Easy to carry
Lightweight design, compact structure, easy to move and convenient to use.
Wide range of applications
Multifunctional output socket to fully meet your usage needs.
100% copper alternator, class F insulation, high conversion rate.
Stable output
Smart AVR controller ensures stable voltage and less voltage waveform distortion.
Digital panel
Digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.
Easy carrying
An open frame configuration means it’s easy to move and use.
Wide application
Various output sockets are available to meet all customers’ requirements
model | DL4000E |
Frequency (Hz) | 50 / 60HZ |
Voltage (V) | 220 110/220 |
Rated power (KVA) | 2.6 |
Power limit (KVA) | 2.8 |
Number of phases | Simplex |
Excitation method | Brush self-excitation |
Power factor () | 1.0 |
Insulation class | F |
Fuel tank capacity (L) | 12.5 |
Rack Type | 25*25MM round tube |
Power model | DL178FE |
Startup method | E: Electric start |
Power Category | Single cylinder four stroke air-cooled vertical |
Cylinder diameter*stroke (mm) | 78*62 |
Displacement (L) | 0.296 |
Compression ratio | 20 : 1 |
Speed (rpm) | 3000 |
Engine power (kW) | 3.7 |
Oil capacity (L) | 1.10 |
Fuel consumption (g/kwh) | 275 |
Fuel brand | Diesel: 0# (summer), -10# (winter) |
Engine oil brand | SAE10W30 (CD grade and above) |
Optional | ATS remote control intelligent digital display panel wheel handle |
Dimensions (mm) | 660*460*540 |
Net weight (kg) | 72 |
Open frame diesel generator set
As an emergency power source, it can quickly solve your power outage troubles. Lightweight and four-wheeled, it is a very good helper for outdoor operations, power generation, and welding.
Product Features
High conversion rate
All-copper motor, F-class insulation, high conversion efficiency.
Stable output
Intelligent voltage regulator AVR, stable voltage, small voltage waveform distortion.
Digital Panel
Digital intelligent control panel with integrated intelligent display of voltage, frequency and timing for easy care and maintenance.
Easy to carry
Lightweight design, compact structure, easy to move and convenient to use.
Wide range of applications
Multifunctional output socket to fully meet your usage needs.
