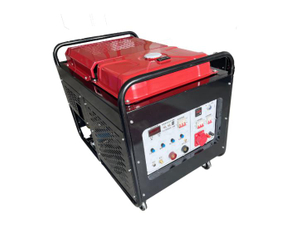

250A Diesel Welding Generator

Diesel Welder generator 250A widely using for all kinds area. strong power and welding current output.
  • JDW-250A

  • 4kw

  • 3000/3600rpm

  • 220 220/380 110/220

  • 50/60hz

Availability:
Quantity:


250A DIESEL WELDER GENERATOR FEATURE


Diesel weldeing generator  alternator is applied, stable current, strong load.


The performance is 30% higher than common excitation alternator.


Light weight and  small size.



DIESEL WELDING GENERATOR SPECIFICATION



Model No.

JDW-250A

Welder

Welding mode

Manual welding

No load voltage

90V

Welding voltage

22-28V

Welding current

40-250A

Load continuous rate

60%

Auxiliary power

AC220V/4KW

Engine

Engine

JD195F

Engine type

Single cylinder,4 stroke,air forced

Output power

17HP

Bore*Stroke

95x66mm

Displacement

499CC

Fuel consumption

312g/KW.h

Ignition mode

Electronic

Start Type

Recoil/electric

Fuel

Diesel

Oil capacity

1.1L

Generator

Fuel tank capacity

25L

Battery

yes

Oil alarm system

yes

wheels

yes

Noise Level

80 dBA/7m

Welding mode

720*530*720mm

Weight

148
